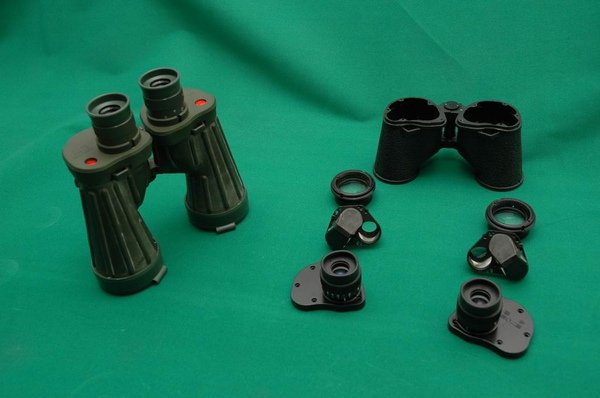

TS-71式8倍雙筒望遠鏡用於野戰偵察、搜索及一般觀測使用。鏡筒內裝定分劃板，可經由判讀測估目標物距離。它係由二個稜鏡式直管鏡聯結軸結合而成，稜鏡式系統可產生正像，使視線間距加大，更具立體效果。左右目鏡之焦距可分別調整，以充分配合使用者之視力，及調整兩眼間距，作最有效之觀測。本望遠鏡各式透、稜鏡均為光學玻璃鏡片，物鏡部份均採多層鍍膜、增加光線之穿透率，在黃昏及光線稍暗處，尚可正常使用，觀測效果良好。
倍率：8 power
物鏡瞳徑：30mm
視場：7°
尺寸：177x60x130mm
出光瞳徑：5mm
眼距調整範圍：56~72mm
目鏡調整：±4屈光度
重量：680g

MOUNT, TELESCOPE: M79 (T148)
Model：M79（T148）
Federal stock No.：1290-795-7745

NBA1 Night Vision Binocular
The NBA1 Gen II innovation type (GEN2, Plus) single Tube Night Vision Goggle for fielded with the Army.
Operation of the NBA1 is controlled of the system obtained by a three position rotary switch
One ON position operates when the goggle is mounted on its facemask, and the other when it is dismounted in a handheld position. In both On positions, an infrared light source can be activated by depressing the button in the center of the switch, and turning the knob one more position. This Light Emitting Diode provides illumination for map reading or other close range tasks.
The NBA1 operates on two commercial AA batteries. The system can be fitted with either Gen II or Gen III image intensifiers.
The NBA1 can also be fitted with a selection of magnifying objectives that convert it to a high performance night vision binocular system for handheld observation. When the system is used as a goggle, a selection of facemasks and helmet mounting options are available to meet mission requirements.
Specification:
Magnification---------------unity
Field of View----------------40ﾟ
Interpupillary Adjustment----55~71 mm
Diopter Adjustment----------6~+2
Focus Range----------------25 mm~∞
Observation Distance--------300 m (in moonlight)
IIT-------------------------18 mm Gen 2.5 Innovation type
Power Supply---------------2.7±0.3 V
Batteries-------------------Two AA size 1.5v alkaline
(Able to continuously use 40 hours)
Weight W/Batteries------------630 g
Operation Temperature---------25~46ﾟC
Optional accessories-----------4X Magnification
Taiwei Precision Technology..........Responsibility-Honesty-Professionalism..........Latest Science & Customer First

S SIGHT：M53
Model：M53
Federal stock No.：1240-856-9452
General：
SIGHTUNIT：M53（XM53E2）consists of TELESCOPE, ELBOW：M109 and MOUNT, TELESCOPE：M128E2 and is intended to replace SIGHTUNIT：M34A2 for mortars and rocket launchers and also the developmental sightunit for BATTLE GROUP ATOMIC WEAPON SYSTEM：M28 and M29.
The telescope is supported in the rotating head of the telescope mount which dovetails into a slot in a bracket on the weapon. A locking device, operated by a lever on the mount, secures the sightunit in the dovetailed slot. Worm mechanisms, scales, knots, and radioactive leveling vials for adjusting the sightunit in elevation and azimuth are on the mount.
The sightunit is used with LAUNCHER, ROCKET：multiple, 115-mm, M91.
LIGHT, INSTRUMENT：XM53 is used with the sightunit.
differences among models
data plate location
Classification：Standard A（OTCM 38113）
CHARACTERISTICS
Length-----6 in.
Width-----5 in.
Height-----10 in.
Weight-----51/4 lb
Magnification-----4 power
Field of view-----10 deg
Diameter of exit pupil-----0.150 in.
Diameter of entrance pupil-----0.600 in.
Equivalent focal length of objective-----3.200 in.
Equivalent focal length of eyepiece-----0.800 in.
Limits of Operation：
Elevation-----1,600 mils（90°）
Depression-----200 mils（11.25°）
Azimuth-----6,400 mils（360°）

Taiwei Precision Technology..........Responsibility-Honesty-Professionalism..........Latest Science & Customer First

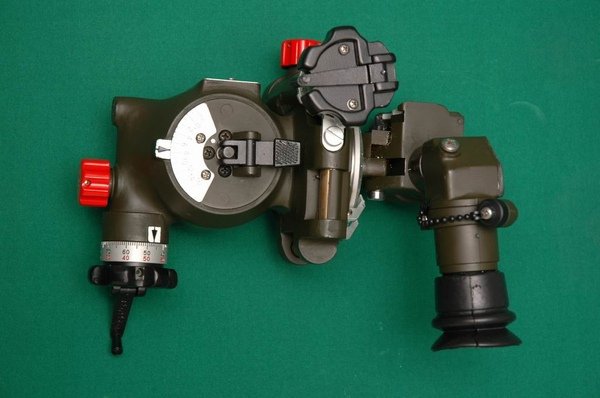

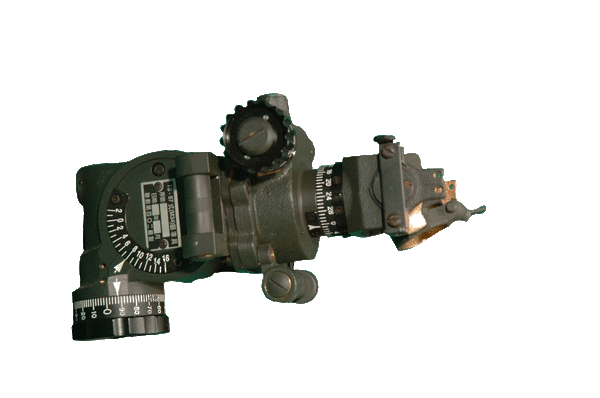

MOUNT, TELESCOPE：M25（T29）
Model：M25（T29）
Federal stock No.：
M25---------1240-757-8429
General：
MOUNT, TELESCOPE：M25（T29）is used with TELESCOPE, PANORAMIC：M12A7C, or M12A7G on CARRIAGE, 155 MILLIMETER HOWITZER：M1A1 or M1A2 for CANNON, 155 MILLIMETER HOWITZER：M1 or M1A1. This mount is used for laying the weapon in elevation for direct or indirect fire. It is of the azimuth compensating type. It consists of a cross leveling mechanism, an elevating mechanism, an actualting arm with bracket, and a socket for the panoramic telescope. The mount tilts about the pivot in the mount actuating arm when the cross leveling knob is rotated. The elevating mechanism is actuated by the elevating worm（longitudinal leveling worm）. The actuating arm bracket supports the pivot for the cross-leveling mechanism. An alining bracket is provided for use of a gunner’s quadrant in checking elevation. The mount has cross-leveling and elevation scales. It has no angle of site mechanism. LIGHT, INSTRUMENT：M34 is used with the mount for night oeration.
differences among models
data plate location
The identification plate (nameplate) is on the rocker at a piont below the longitudinal leveling worm knob.
Classification：Standard A（OTCM 25702）
CHARACTERISTICS
Length---------1 ft, 31/8 in.
Width---------1 ft
Height---------111/4 in.
Weight---------48.5 lb
Limits of Operation：
Elevation---------0 to 1,100 mils
Depression---------533.40 mils of arc

Taiwei Precision Technology..........Responsibility-Honesty-Professionalism..........Latest Science & Customer First

M4卡賓槍（M4 carbine）是M16突擊步槍的縮短版本，獲世界各國的軍隊及警隊採用。

• 1 設計及歷史


• 2 型號



  • 2.1 M4/M4A1


  • 2.2 M4 MWS 模組化武器系統


  • 2.3 M4A1卡賓槍


  • 2.4 SOPMOD Block I


  • 2.5 SOPMOD Block II


  • 2.6 其他






• 3 配件


• 4 型號列表



  • 4.1 註解



    • 4.1.1 槍托


    • 4.1.2 發射模式


    • 4.1.3 後照門


    • 4.1.4 槍管類型


    • 4.1.5 槍管膛線纏距


    • 4.1.6 護木


    • 4.1.7 槍口裝置


    • 4.1.8 槍型


    • 4.1.9 版本









AIMING CIRCLE：M2（T3）
Model：M2（T3）
Line item No.：4-00115-15
Federal stock No.：
M4---------1290-614-0008
General：
AIMING CIRCLE：M2 is used to measure the azimuth and elevation bearing angles of a ground or aerial target with respect to a presselected base line. The aiming circle has many of the characteristics of a surveyor’s transit, Basically, it consists of a telescope mounted on a mechanism which permits unlimited azimuth and limited elevation movements. By rotating two orientating knobs, zero azimuth heading with respect to magnetic north or any other selected compass heading can be established. The azimuth control knobs can be disengaged ofr rapid movement by exerting an outward pressure on the knobs. The mechanisms are spring-loaded and will reengage when outward pressure is removed. A locking device secures the compass after the orienting adjustment has been made.
differences among models
previously listed model M2A1 was obsoluted by AMCTC item 2187.
data plate location
The identification plate is located on the side of the housing.
Classification： M2 Standard（AMCTC item 2187）
CHARACTERISTICS
Weight of aiming circle：
w/cover--------- 9 lb
w/equipment--------- 21lb
Azimuth rotation--------- unlimited
Elevation(max)--------- 800 mils
Depression(max)--------- 400 mils
Magnification of telescope--------- 4 power
Field of view--------- 10°
